Are you still troubled with unsmooth ship evacuation?

Are you still worried about breakage?

Jinzhou SHC coating

Solve your problems in one time

No worries!

①Communication Board

②Package Substrate

③Flexible Board

④Alluminum Board and Alluminum Alloy

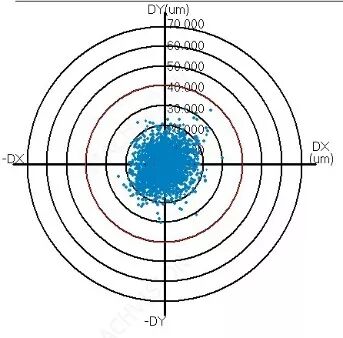

Target Board: communication board  t5.0*1pnl

Tool: A129PDΦ0.13-1.3  USFΦ0.13-3.5

Processing Method：pre drilling+step drilling+reversable drilling

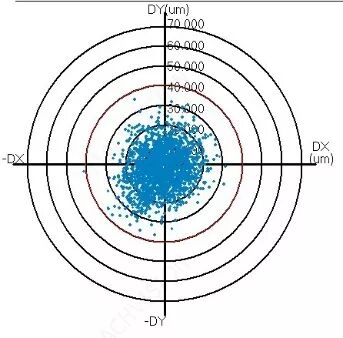

The processing difficulties of super high aspect ratio micro drilling of 5G communication board can be solved effectily by SHC coating.

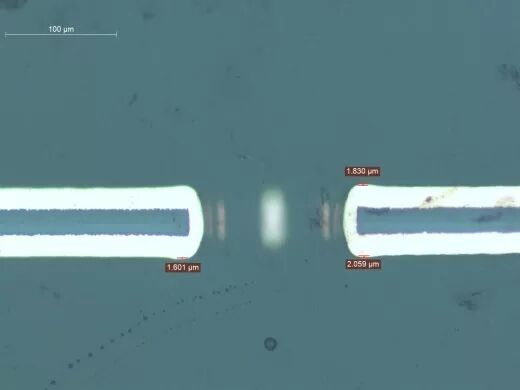

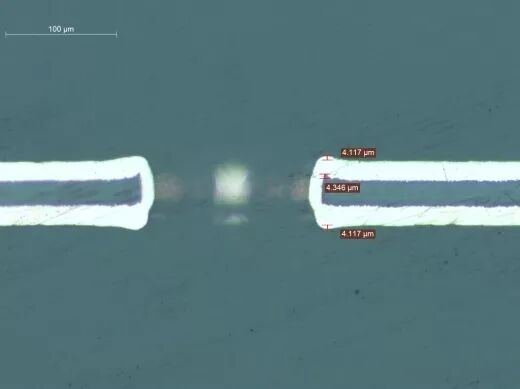

Target Board: HL832NX  t0.20mm

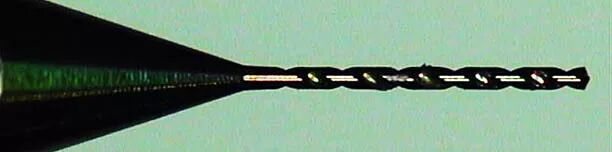

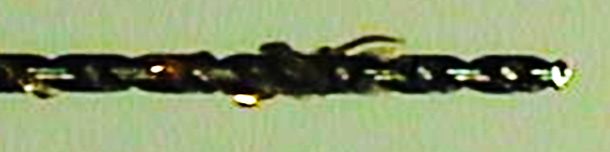

Tool: SHC coated drill Φ0.11 vs uncoated drill Φ0.11

Parameter：F3.2m/min  S295krpm

Efficiency improved more than 50%, tool change frequency reduced about 67% and machine waiting time reduced a lot.

Aquirment of new bits reduced about 67%, repointed cost reduced and auxiliary material reduced about 33%.

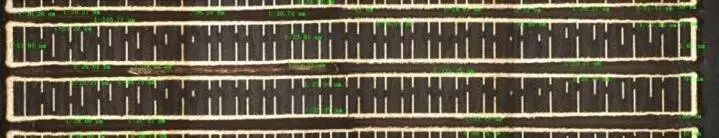

Target Board: double-sided flexible baord 1mil*10pnl

Tool: SHC coated drill Φ0.15 vs uncaoted drill Φ0.15

Parameter: F22㎜/s  S160krpm  R300㎜/s

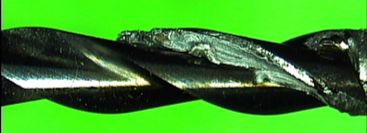

SHC coated drill with good swarft evacuation capability, can assure excellent processing quality with little deformation.

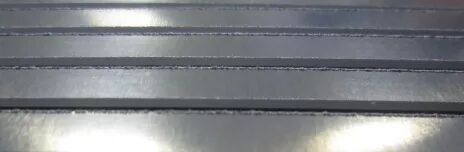

Target Board: 5052 series Alluminum baord T1.5*2pnl

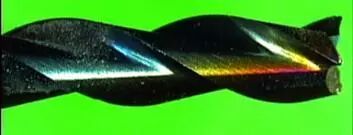

Tool: SHC coated router Φ2.0 vs uncoated router Φ2.0

Parameter: S40krpm  F12mm/s

SHC coated router with good swarft evacuation capability and sharp cutting edges to ensure outstanding processing quality.

SHC coating can improve the swarft evacuation capability, reduce breakage and improve processing quality and efficiency effectively, which is a great choice for the request of cost ruduction and efficiency increase. So why waiting, just come and get it!
